Description
Data Sheet Downloads
Specifications
- IP65 Waterproof Outdoor Downlight
- Optical Sub- System Variants
- Anti-Glare, High CRI 90 LED Downlight
- Premium Resilience & Smart Controls
- Available in 10W / 15W / 18W / 25W / 30W / 35W / 40W / 45W
- High Light Output
- Colour Temperature Options
- 1-CCT: 2700K / 3000K / 4000K / 5000K
- 3-CCT (DIP Switch): 3000K + 4000 + 5000K / 5700K
- Product Dimensions (mm)
- Ø90 × 107
- Ø130 × 110
- Ø160 × 110
- Ø214 × 119
- Ø250 × 125
- Input Voltage: AC 220–240V 50/60Hz
- Beam Angle:
- Type A: 24° / 36° / 60° precision lenses
- Type B: 70° / 75° wide diffusers
- Triac / DALI dimming options
- SDCM <6 / <3
- High-clarity tempered glass front lens within a die-cast aluminium housing

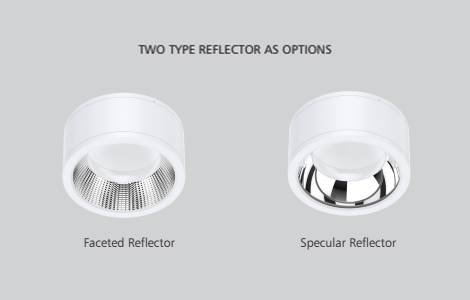

- Reflector Engineering: Faceted Reflector, Specular Reflector options
- Lifespan & Protection: 50,000 Hours | IK06 impact resistance
